Text:/ Derek Powell

SILK PURSE ON SOW’S EAR BUDGET

Sadly, technology budgets, even for major projects, often do start out staggeringly low. As Phil notes: “Somehow that [arbitrary] figure becomes your target – unless you vigorously defend your brief and go into bat for it – and that’s what we did”. With enthusiastic support from Brian Nash and BCEC Operations Director Geoff Hanrahan, the final equipment and infrastructure budget eventually settled on a more realistic figure of something over AU$5m, but DesignStage had one more trick to ensure that the project extracted every possible cent of value from the budget. While all the infrastructure such as cabling, racks, patching and built-in equipment went into the construction package, all the loose equipment including consoles, flown speaker arrays, lighting instruments and the like was placed in a separate ‘eleventh hour’ procurement package. Purchasing for this equipment could then be delayed by several years until the building was nearly complete, allowing the project to then take advantage of the rapid development in equipment by buying the latest models.

The strategy worked spectacularly well, and the BCEC in-house lighting, sound and AV facilities are second to none, with rapid turn-around between functions and instant linking of spaces facilitated by the extensive built-in patching and rigging.

PARALLEL UNIVERSES

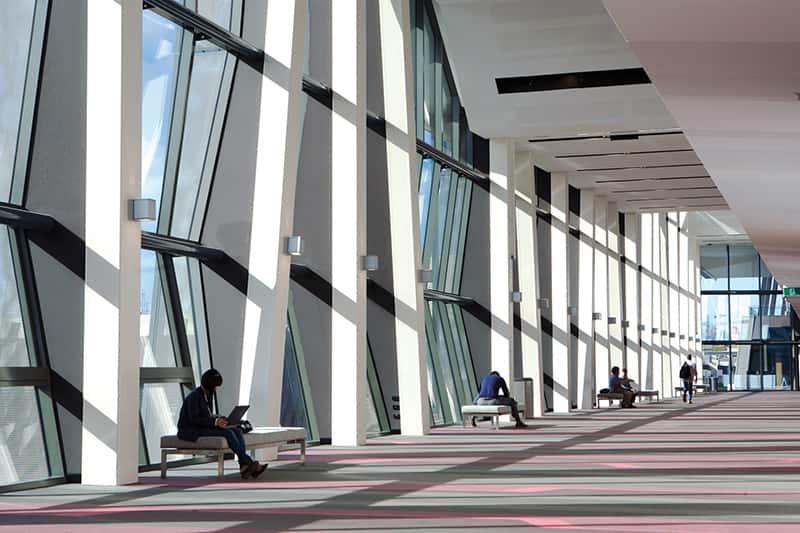

Though there are five levels, BCEC on Grey Street can function very effectively to host two simultaneous conferences. Each of the two auditoria (seating 400 or 600) has its own foyer space for exhibitions, break-out rooms and speakers’ facilities – allowing delegates to ‘own’ the floor for their conference.

Viney’s patching plan for Grey Street is enormously flexible. Each room contains a rack with connections out to the presentation area and strategic points around the room (depending on size). Each rack on every level is joined by dedicated tie lines with video, audio, data and fibre runs allowing almost any kind of connection to allow presentations to be shared between spaces. In addition at least one rack on each floor has patching to a central rack on floors above and below allowing virtually any combination of rooms to be accessed. All spaces have semi-permanent operator stations that can be equipped with vision switchers, audio mixers and lighting consoles to cover requirements of any complexity. As you would expect, these operator stations have links to a number of projection and PA points, as well as the key stage and presentation areas.

The two auditoria are striking in design and provide a very flexible space for plenary sessions, with a stage area spacious enough to easily accommodate a speaker panel or even allow musical or small-scale theatrical performances. Each has an open operator station at the rear with plenty of space (and patch points) for audio, video and lighting consoles. as well as video cameras. While the control, PA and projection equipment were placed into the 11th hour fit-out package (see sidebar) the infrastructure package did include the main audio DSP which was interfaced with the centre-wide paging and background music systems via Cobranet.

CONTROLLED FLEXIBILITY

An AMX control system is included in each of the auditoria. The touch screens are generally for room setup and mode selection, rather than for presentation control by an operator, though both are technically possible. Each central controller is interfaced with the house lighting, blackout blinds, and curtains as well as having basic control over the sound system. The control system can also provide basic stage management functions such as control of any performance relay cameras and zone paging to back of house areas.

Fixed lighting bars and motorized trusses (generally each with 500kg capacity) were specified above the stage and over the seating areas. The rigging had specific provision for central projection points (for single screens) and dual projection positions as well as rear projection points.

The lighting provisions are extensive and well thought-out. Dimmers, dimmer outlets, lighting bars, patch panels, and DMX lighting control distribution were all part of the infrastructure package while the luminaires and consoles were left until the fit-out. Cleverly, most major rooms have both central dimmer racks and provision via 40A three-phase outlets to add extra dimmer/distribution racks wherever needed. This adds enormously to the flexibility for set-up while keeping complexity (and dimmer/distro inventory) under control.

FITOUT KIT

Keeping the best till last proved to be a wise move as Brian was able to snap up the very latest in lighting, vision and audio. Both the Digico SD9 and the Yamaha LS-9 series consoles that were finally chosen were far and away superior to anything that could have been specified early on in the project and both practically obviate the need for racks of outboard processing with extensive EQ, dynamics and effects capabilities provided on each channel. Likewise the extensive snapshot and recall capabilities give operators a very quick starting point for set-up, speeding change-over time between functions and eliminating much of the drudgery in setting up for shows.

There’s too much more to this story to tell in just one article, but the function rooms, especially the stunning Boulevard room and Sky room are worthy of special mention. Cleverly conceived ‘black zones’ in the ceilings of each space allow functions to be fitted with extensive lighting and sound when required yet these rigging positions virtually disappear when not in use. This allows a very clean and elegant look when dressed for a formal dinner, yet each of these major function rooms retains the ability to be rigged with a tour-de-force display of start of the art lighting and sound that would rival any top club venue.

The Grey Street project at BCEC has given smaller conventions access to truly top-end function rooms that, thanks to a uniquely flexible partnership between designers and operators, provides unrivalled opportunity for an uncompromised audiovisual experience.
