AV Case Study: Chalky’s
Brookvale’s newest multi-zone entertainment hub gets a high-output audio fitout that doesn’t miss a beat.
Brookvale’s not exactly short on breweries and bars, but Chalky’s is offering something a little different: it’s a pool hall, sports bar, karaoke lounge, and cocktail hideaway all rolled into one.
As a newly refurbished venue from the Bucketty’s Brewery team, Chalky’s brings a distinctly playful and premium aesthetic to what was once an old nightclub. The bones of the venue remain, but the space has been totally reimagined—with AV to match.
When Soundview’s Josh Yeates got wind of the project, he jumped at the chance to pitch for the audio contract. “We usually work more in corporate and education,” he explains, “but I live just up Pittwater Road in Dee Why, and when I heard Chalky’s was undergoing a refresh, I reached out. It turned out they’d been let down by another audio provider, so we were brought in fairly last-minute to get the job done.”
SOUND THAT HITS DIFFERENT
Nick McDonald, one of the venue’s founders, explains the Chalky’s proposition: “It’s an adult playground. We’ve got pool tables and karaoke rooms, a speakeasy bar, and we’ve got a Michelin star-trained chef. Plus 16 taps of independent beer. Early on we realised the big screen setup and the pool hall would need a big, immersive sound system. For those big games the PA needs to hit you in the guts. We have some pretty sick Tannoy speakers and a couple of nice big subs that really fill the room with that warmth. And has the clarity that means you can also still have a conversation with the person next to you.”
Josh Yeates elaborates: “They wanted a very loud, immersive sound system for big sporting moments. But also the ability to wind it back for general service. We designed a system that allows them to zone and route audio flexibly throughout the venue.”

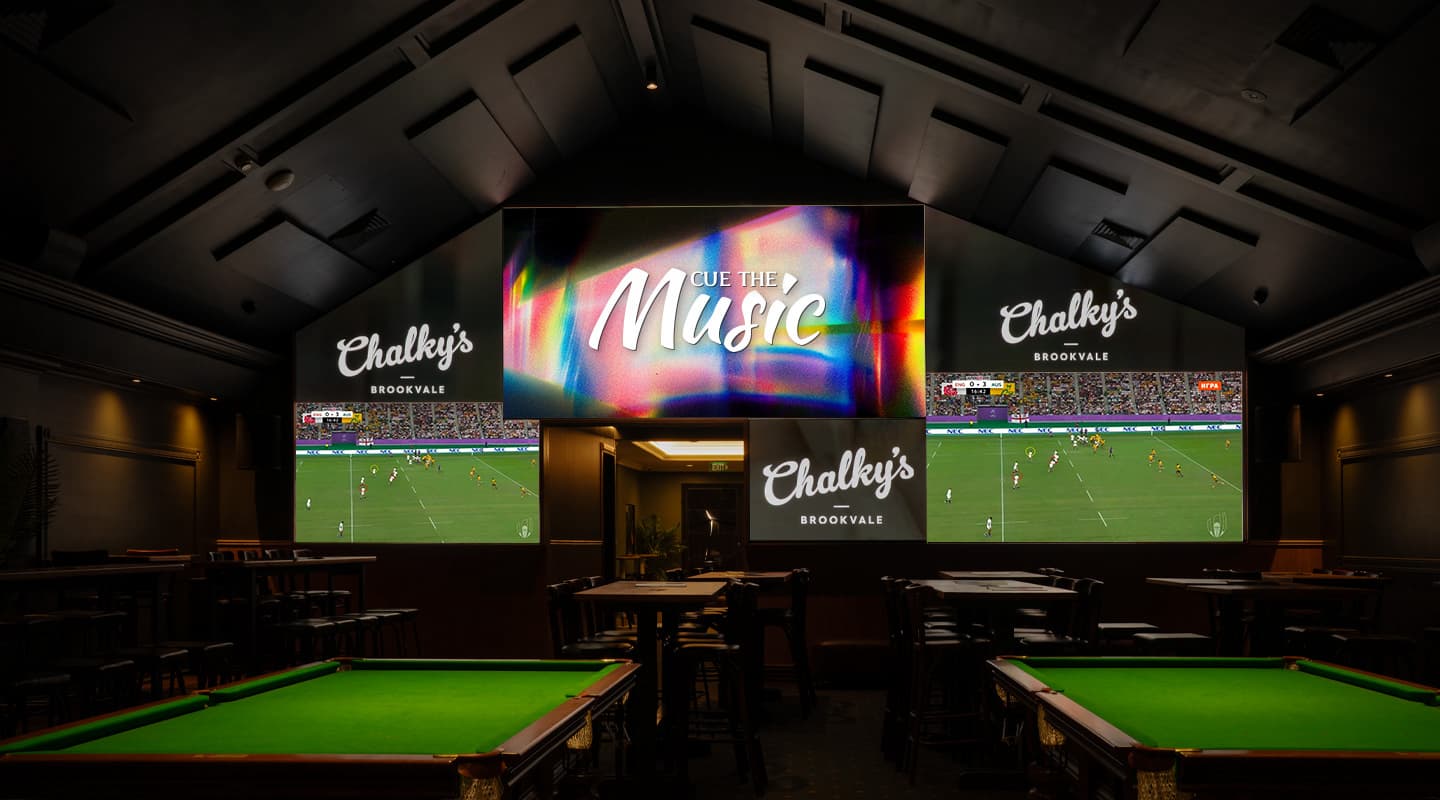

The front-of-house system anchors around a pair of Tannoy VX12s, delivering muscular audio either side of a giant LED wall (not part of Soundview’s scope). Low-end reinforcement comes via a pair of Tannoy VSX12BP floor-standing subs, and the coverage is filled out with seven Tannoy DVS 8T loudspeakers around the perimeter of the space. “Those fills are on a separate channel,” notes Josh, “so staff can control their level independently depending on what’s happening in the room.”
At the bar, Soundview added an 85-inch LCD to mirror the LED content, along with a DJ input and two wireless handheld mics for announcements or MC work.
There’s even a speaker installed in the ground floor foyer, zoned with the DVS 8Ts but given its own attenuator for local volume control. “That way they can crank it up or down without affecting the rest of the venue,” says Josh.

Q-SYS TAKES CONTROL

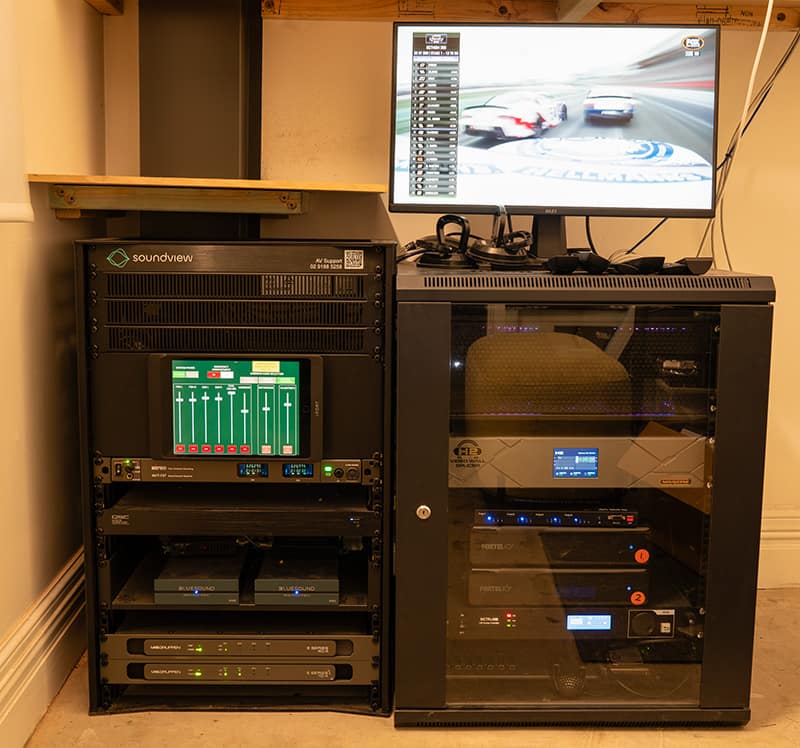

Under the bonnet, it’s a Q-SYS Core 110f doing the heavy lifting. “It’s the brain of the whole system,” says Josh. “All audio zones, including the karaoke rooms, the bathrooms, the corridor and Valentine’s cocktail lounge, run back to that central rack.”
Staff control the system via dedicated iPads, which handle source selection, EQ, and volume levels. Video isn’t part of the Q-SYS remit in this case, just audio performance.
BELT IT OUT
Chalky’s’ two karaoke rooms are a big part of the drawcard. Each room features a large LCD, an iPad for navigation, and a powerful pair of Tannoy VX8 loudspeakers driven by Lab.gruppen CA2402 amps. “They’re deceptively loud for their size,” laughs Josh. “They said they wanted it loud, and I reckon we delivered.”
The rooms are essentially twins, with one slightly larger (sporting an 85-inch display) and the other with a 65-inch screen.
Valentine’s cocktail bar goes for a smoother, more ambient feel. Background music is again handled via iPad, and a corner DJ input and mic jack give the room performance capability when needed.
“”
Early on we realised the big screen setup and the pool hall would need a big, immersive sound system. For those big games the PA needs to hit you in the guts

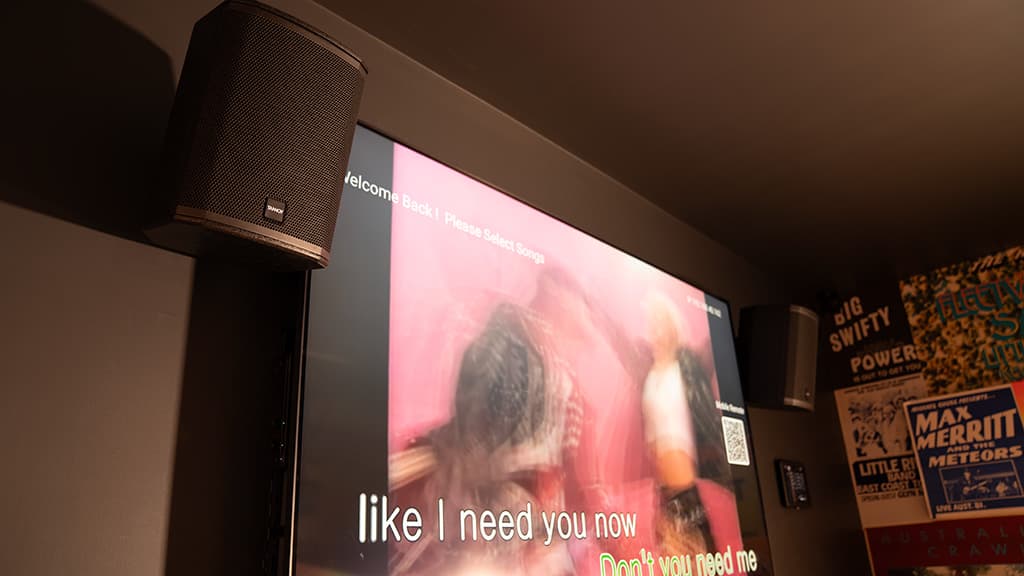

Karaoke fans can go hard with a pair of Tannoy VX8 loudspeakers.
THE RIGHT GEAR, RIGHT NOW
Why Tannoy and Lab.gruppen? “Honestly, in the first instance, it came down to availability,” says Josh. “We were up against it time-wise, and they had what we needed in stock. But importantly, the gear also hit the right balance of performance and price. For this kind of venue, it was spot on.”
Ceiling-mounted Tannoy CMS 603 speakers are deployed in the corridor and throughout Valentine’s, while the bathrooms are served by TOA PC-1860 ceiling speakers – one in each.
GOING THE EXTRA MILE
With the opening night looming and other trades falling behind, Soundview stepped up to help get the venue over the line. “We were a bit further along than we probably should have been considering the state of the site,” Josh recalls. “But we did what we could to keep things moving.”
In the end, the client was thrilled. “Even after they’d opened, they asked for a few extra tweaks and changes. We could’ve charged extra, but we just got them done. That kind of support goes a long way, and I think it’s helped cement a strong relationship.”
Chalky’s: chalkys.net.au
Soundview: soundview.net.au
Australis (Tannoy, Lab.gruppen, TOA): australismusic.com.au
GEAR HIGHLIGHTS

Main Pool Hall
- 2 × Tannoy VX12 (L/R)
- 2 × Tannoy VSX12BP subs
- 7 × Tannoy DVS 8T perimeter speakers
- 1 × 85″ LCD (bar mirror display)
- 2 × wireless handheld microphones
Karaoke Rooms
- 4 × Tannoy VX8 (2 per room)
- 2 × Lab.gruppen CA2402 amplifiers
Valentine’s Cocktail Lounge
- 6 × Tannoy CMS 603
- 1 × handheld microphone
- 1 × DJ input
Other Zones
- Corridor: 2 × Tannoy CMS 603
- Bathrooms: 2 × TOA PC-1860
- Ground Floor Foyer: 1 × Tannoy DVS 8T (with attenuator)
Processing & Control
- Q-SYS Core 110f
- Multiple iPad control panels
