AV Case Study: Jungle Adventure Playground
Designing a PA system to cater for a sprawling indoor playground has its challenges. BSG and Audio Brands were up for it.
Text:/ Graeme Hague
The Jungle Adventure Play Centre in North Lakes (Sunshine Coast) is a place where kids can safely play. In a kind of ‘jungle’ environment. Obvious? Maybe, but it’s worth pointing out that such facilities are important these days for providing somewhere children can play and the parents are confident the equipment is thoroughly – and regularly – checked for any faults, the building itself has total security preventing the little monsters escaping or anyone getting in, and the management is on top of keeping everything ship-shape and operating smoothly. You can leave any legal representation in the SUV, in the carpark with a can of soda and packet of chips. The focus is firmly on the kids having fun, but there is a nod to corporate events too when, potentially, the MDs and CEOs just can’t resist a go on the slippery-slide at company Christmas parties. No surprise, with a winning formula, the JAPC is a growing business with now two locations in Queensland.
Designing a PA system to cater for a centre like this has plenty of challenges. Brisbane Sound Group (BSG) was more than up to the task, particularly since BSG has fitted out the other JAPC previously at Tingalpa.
INTO THE MAZE

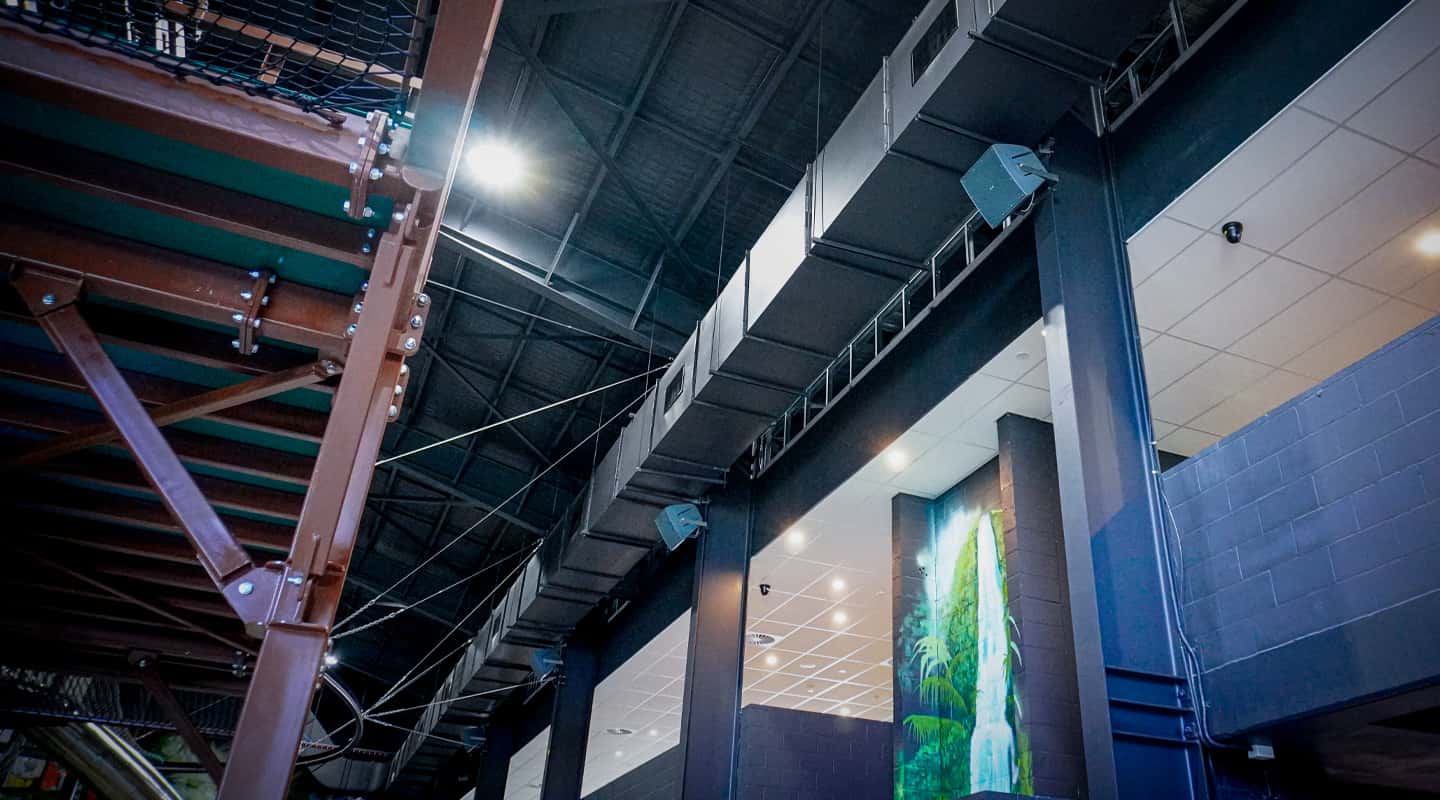

The majority of the play areas are inside a single, very large and purpose-built building. There are outside activities as well such as outdoor eateries and mini-golf, but the real jungle chaos happens inside. This was a new install, and a new centre, which always has its advantages if the contractor’s project management is on track. The various playground activities create different AV zones, plus you have the café which is licensed, administration, amenities… the usual areas in a venue of this nature. Unfortunately, BSG wasn’t given access until relatively late in the scheme of things and this posed the obstacle of getting around… well, the obstacles. Kids’ playgrounds are all about obstacles, right? You can possibly imagine the clutter of ingenious devices, the slides, tunnels, swings, climbing frames, scaling walls – the size and scale of the physical activities is mind-boggling, and they include nets or cages so the kiddies won’t plunge to their deaths, plus a myriad of safety harnesses.
Try getting your largest A-Frame ladder or scissor-lift amongst that lot.
FOREWARNED IS FOREARMED
Having worked on the Tingalpa centre, it revealed to the BSG team the problems of speaker choice and placement, figuring out clear dispersion fields and line-of sight. Josiah Kerridge, BSG’s Installation and Projects Manager explains, “Accessing the high ceilings and walls to get speakers into position was often a real challenge, and then running cables to them too. We were determined not to compromise and found solutions every time.”

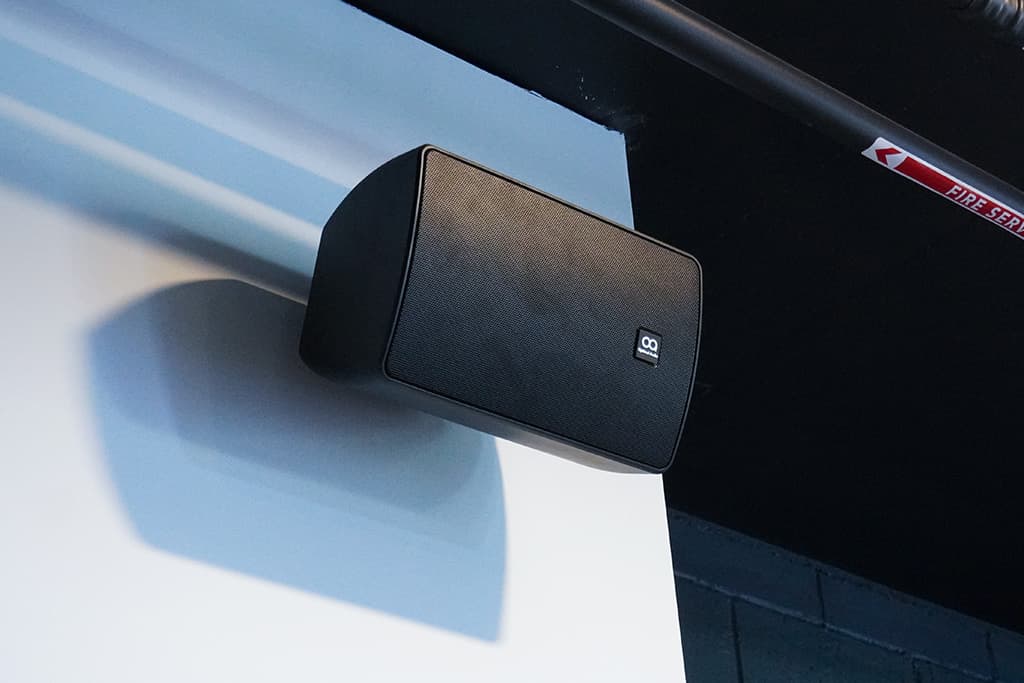

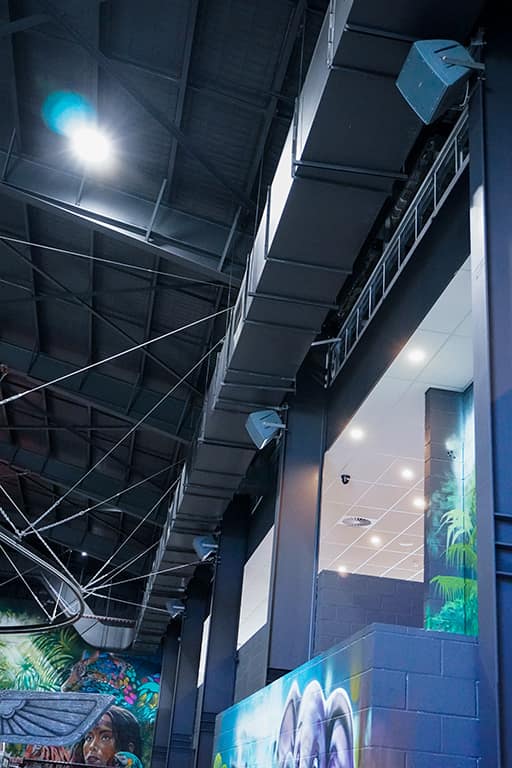

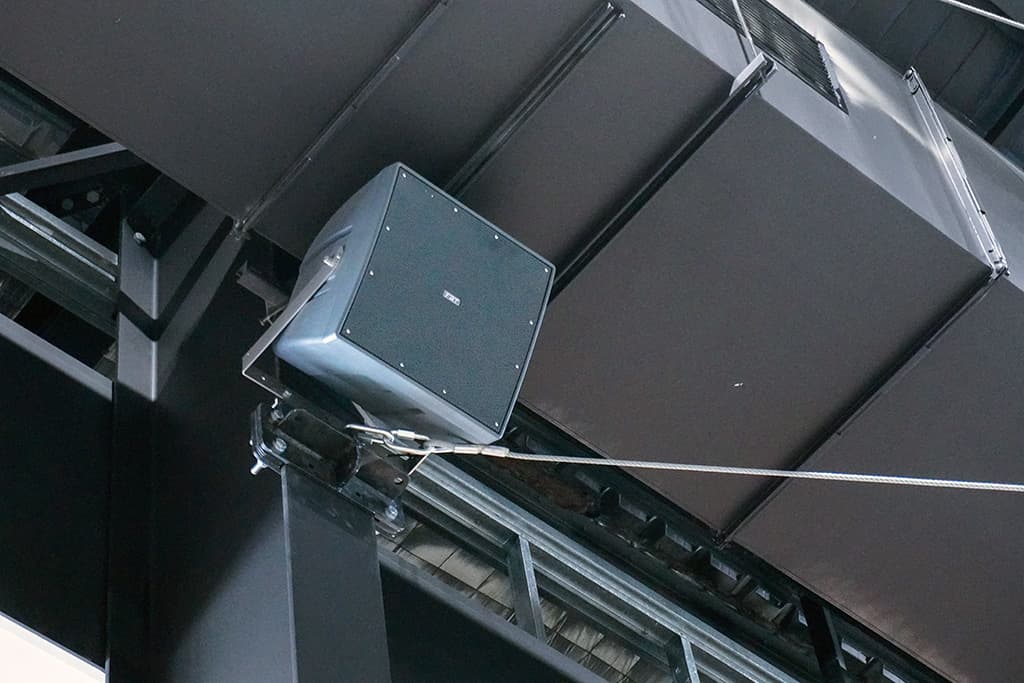

Where there was any kind of suspended ceiling or nominal surface in the play equipment design, the choice was Optimal Audio UP6 ceiling speakers with a backcan to protect the unit and ensure it performed to specs. When ceiling mounts weren’t possible, Optimal Audio Cuboid 6-TXB were placed to take full advantage of the 130° x 120° dispersion. On a few occasions, BSG utilised the building’s existing network cabling infrastructure to deploy a Dante audio network and remotely located amps where access for new speaker cabling wasn’t feasible. Outside, FBT Shadow-112CT speakers have everything covered and will easily survive that fickle Queensland climate.
This was when Audio Brand’s expertise and advice proved invaluable. Josh Bonnici, BSG’s Operations and Marketing representative tells us, “Audio Brands was a great help in narrowing down speaker choices and the appropriate amplifiers to power everything. Technical support was always there the moment we needed anything.”



SMOOTH… SLIDING?
Josiah explains with remarkable calm, “With the previous project, after we’d completed the entire install, someone decided the building’s roof needed extra reinforcing and that undid a lot of our work, and we had to go back in.”
That’s the sort of thing that can drive you up the climbing wall – without a safety harness. The BSG crew made doubly sure nothing like that was going to happen again before they started. Overall, with Tingalpa providing a handy learning curve, BSG was able to anticipate any issues, and that made the North Lakes a comparatively straightforward process over a period of 3-4 months as the build itself progressed.
LOUD FUN
The final result is 12 zones all tightly focused to avoid spill and at the same time having the headroom and speaker performance to overcome the high level of ambient noise (yes, let’s say it – screaming kids and panicked parents) with total clarity and reliability. Control is through a master wall panel at the reception desk and remote panels that are intuitive and easy for staff to operate, including paging for everyone for emergency or safety announcements.
Josiah Kerridge makes the point, “Not only is the finished system performing so well, it’s an important project from BSG’s point of view. BSG has been around a long time and is well known as leading provider of live concert and event production, but we’re not so recognised as an AV integrator when in fact we’ve got a fantastic crew and a lot of experience in our team. These JAPC contracts have demonstrated we’re well capable in the field, and we’ll certainly be looking to expand into AV install industry.”
It’s often said, “It’s a jungle out there.” It certainly is inside the Jungle Playground Play Centre, albeit a very controlled and safe jungle.
BSG and Audio Brands have made it even safer, not to mention hugely entertaining, with a high-end and well-designed PA system that performs flawlessly.
Now, stand aside, it’s our turn on the flying fox.
Brisbane Sound Group: brisbanesound.com.au
Audio Brands Australia: audiobrands.com.au
EQUIPMENT LIST
- FBT Shadow 112CT 12-inch outdoor loudspeaker
- Optimal Audio Cuboid 6TX 6.5-inch loudspeaker
- FBT MDA4500 amplifier with 4 x 4 DSP matrix
- Optimal Audio SmartAmp 10 2 x 125W amplifier with DSP
- Optimal Audio SmartAmp 20 4 x 125W amplifier with DSP
