DiGiCo Quantum225 — AV.technology
New compact console in Quantum series can be specced with Dante or MADI; 72 inputs, flexible mounting bracket for screens or KLANG
In January, DiGiCo announced New Year New Hope, giving three lucky winners three great gifts – a DiGiGrid MGB MADI to SoundGrid Interface; the first of the newly launched KLANG:kontrollers – Serial Number 1; and a DiGiCo Quantum Range console. What those entering did not know at the time was that this was an opportunity to own one of the first Quantum225 consoles, designed to bring the Quantum Processing power and features in a compact and robust worksurface.
Sensitive to the hiatus in the large-scale, live touring market, DiGiCo has designed the Quantum225 to be agile and flexible, allowing the system to adapt to the demands of the changing industry. Specified with the new DQ-Rack with integrated Dante, the 225 is well equipped for AV installation and the demands of an AoIP networking environment. Alternatively specified with the MQ-Rack with MADI connectivity for touring infrastructure allowing Quantum225 to integrate with existing, live-focussed infrastructure.
The Quantum225 includes 72 inputs channels with 36 busses + Master Bus and a 12×12 Matrix. There are four MADI ports and dual DMI ports for added connectivity, 8 x 8 analogue and 4 AES channels for local I/O, built-in UB MADI, optional optics and Waves SoundGrid, plus dual PSU.
The Quantum225 also incorporates now familiar features from the existing Quantum Range including Mustard Processing channel strips, Spice Rack plugin style native FPGA processing options, Nodal Processing and True Solo.

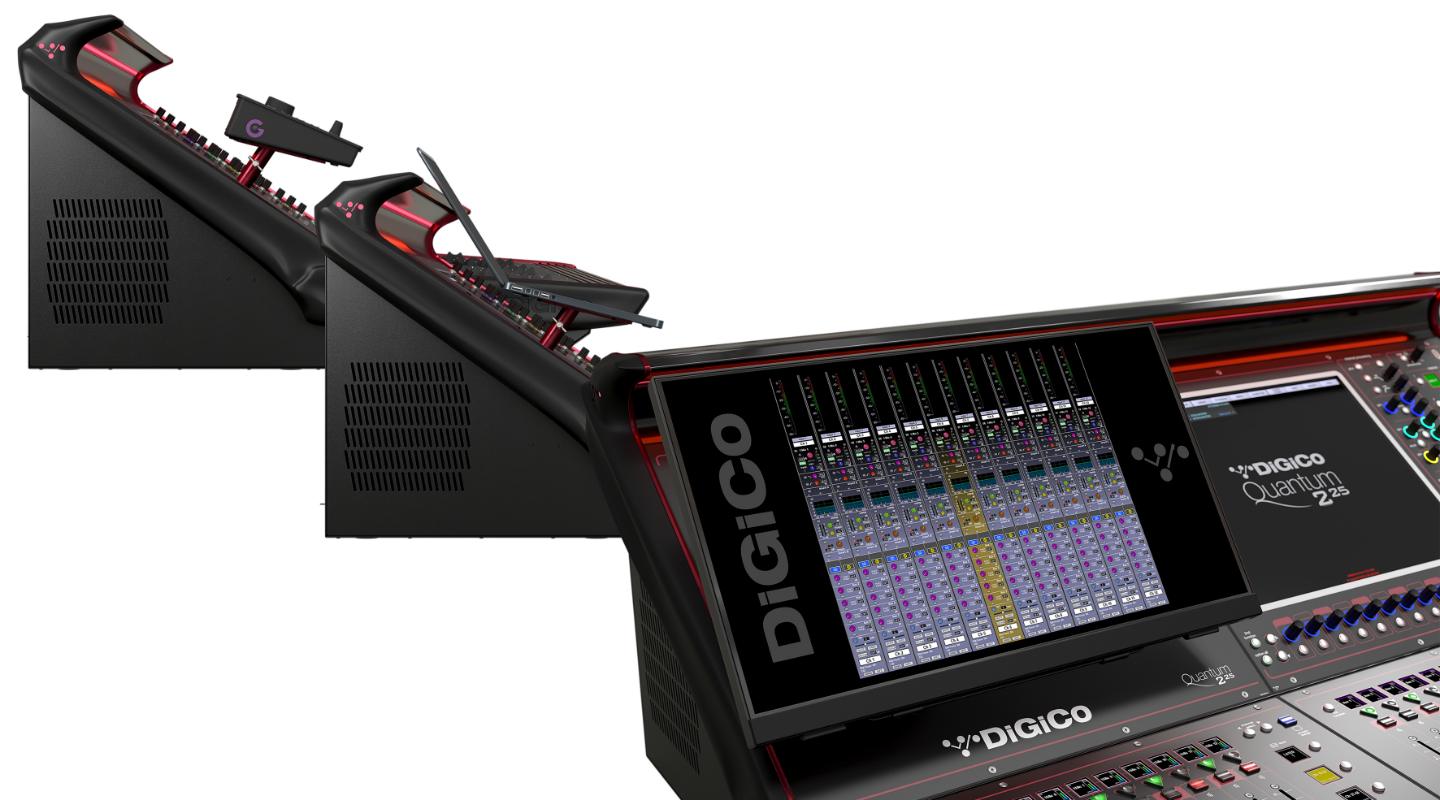

There is a 17-inch, full colour, daylight bright, TFT multitouch screen with the Quantum Dark application, seen before on the Quantum338, combined with 41 mini TFT’s located across the surface providing user feedback and interaction.
Unique to Quantum225 is a custom designed, multi-purpose mounting bracket that attaches quickly and easily to the left-hand panel of the console. This can accommodate an additional channel or overview screen, a KLANG:kontroller, and can be further expanded to fit either a laptop or a script – particularly useful for theatre applications. The bracket can be installed at two angles with quick release to cater for many preferences or applications.
The new compact, 6U DQ and MQ racks have been designed from the ground up specifically for modern application demands. They feature 48 mic/line inputs, up to 24 analogue outputs or up to 8x AES outputs. Clever audio design allows the user to reconfigure 4 of the analogue line outputs to be either analogue outputs or dual AES outputs. This I/O flexibility and other configuration changes are managed from the racks very own TFT Configuration screen. Standard features included Dual PSU and 48k or 96k operation.
