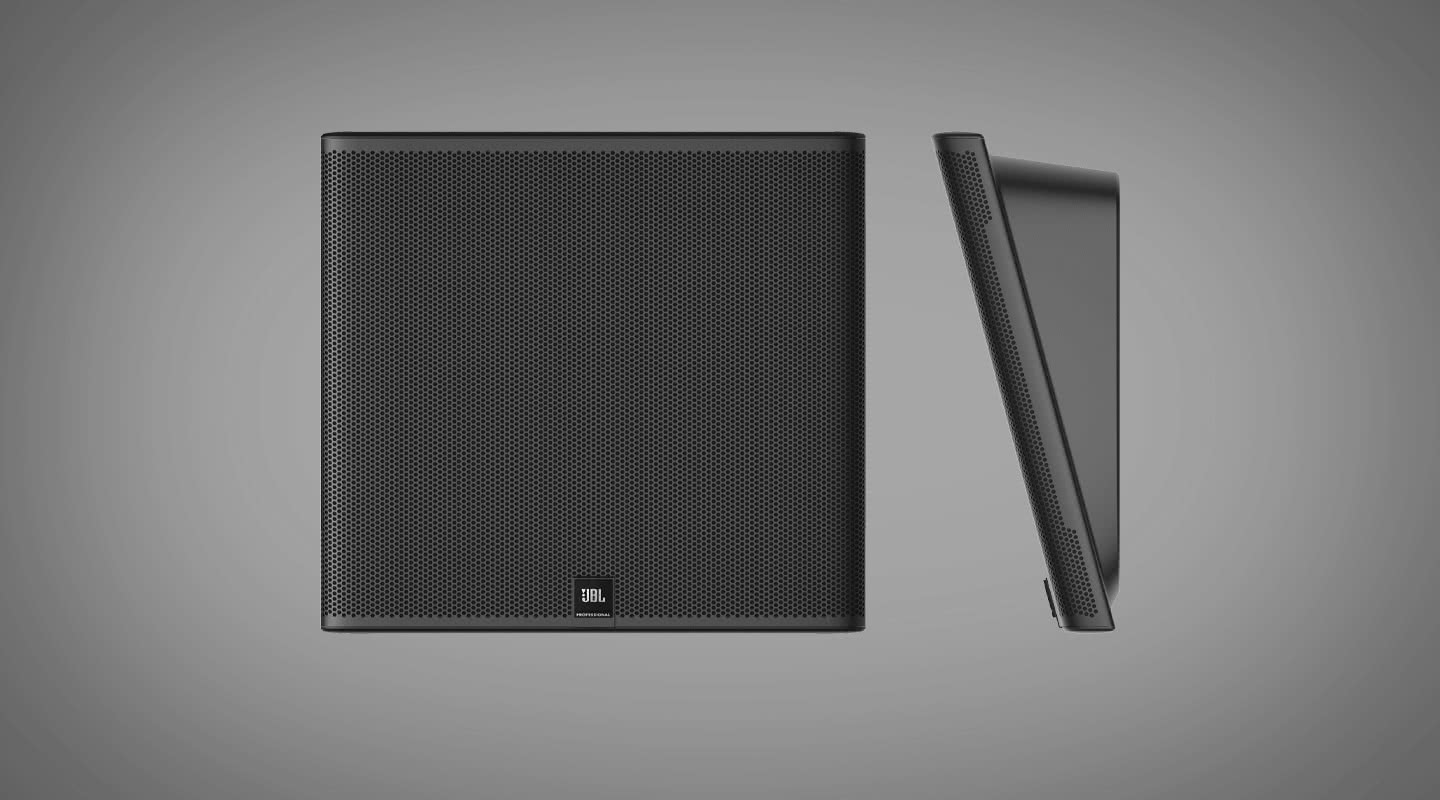

JBL SLP Series

Discrete, low-profile surface mount loudspeakers.

By

9 May 2023

The sleek, on-wall presence of JBL’s SLP loudspeaker family provides superior, full-range sound and broad, consistent coverage in a low-profile enclosure. As winners of international design awards for industrial design excellence, these elegantly finished speakers are available in black or white finishes to complement any décor. This makes them perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, or any installation application calling for a discreet look.

Installation of this series of speakers is easy thanks to the included slide-in wall bracket, and the 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications.

SLP12/T

The SLP12/T full-range loudspeaker has a 75mm driver, and boasts 40-watt power handling. It features a 15-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation.

Features:

  • 3-inch full-range transducer
  • 40W continuous pink noise, 80W continuous program power handling
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4 inches deep
  • 15° down-tilted coverage allows flush-to-wall mounting
  • Slide-in wall bracket included for easy installation
  • Available in black or white finishes
  • Rain cover

SLP14/T

The SLP14/T two-way speaker features a coaxial 100mm driver and offers 50-watt power handling. It has a 25-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation.

Features:

  • 4-inch polypropylene cone woofer and 1-inch silk-dome tweeter transducers
  • 50W continuous pink noise, 100W continuous program power handling
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4-inches deep
  • 15° down-tilted coverage allows flush-to-wall mounting
  • Slide-in wall bracket included for easy installation
  • Available in black or white finishes
  • Rain cover

JBL Professional: jblpro.com
Australian Distributor: madisonav.com.au
