L-ACOUSTICS MEASURES UP TO TEHRAN’S MILAD HALL — AV.technology

By

27 July 2017

l-acoustics milad hall tehran

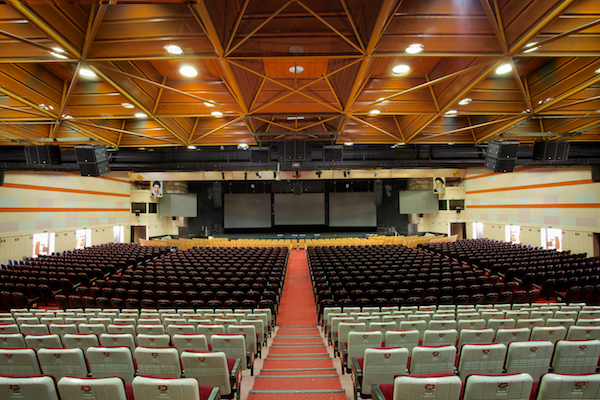

Milad Hall is the Iranian capital of Tehran’s premier concert venue and has the distinction of being the only site in the city that is permitted to hold pop concerts. With demands on the venue to update its outdated sound system and a challenging room shape making it hard to cover the audience evenly, Milad Hall chose an L-Acoustics Kara and ARCS WiFo system for even coverage from front to back.

The system was designed and installed by L-Acoustics Iranian distributor, Farasout Negar. The company has both a distribution and rental arm, the latter handling Milad Hall’s audio requirements on a day-to-day basis.

The 2000-seat space presented challenges when it came to providing audio coverage for the entire audience. Although it has a traditional raked seating layout, the auditorium has a central elevation that obscures the audio from the main hangs of the PA for members of the audience seated at its rear. The L-Acoustics system addresses these issues by using a combination Kara and ARCS WiFo for both the main and delay system, with the main system covering the area before the central elevation and the delays the seating to the rear.

l-acoustics milad hall tehran

Working with L-Acoustics application engineer Nicolas Bertin and using L-Acoustics Soundvision 3D acoustic simulation programme, Farasout Negar designed a system comprising main hangs of six Kara left and right of the stage, plus two SB18i subwoofers per side flanking a central cluster of two ARCS Focus and one ARCS Wide, which deliver even coverage for the front of the auditorium, with four 12XT providing outfill.

To address the seating area behind the central elevation, the delay system comprises central and side clusters of two ARCS Wide and two ARCS Focus, flanked by SB18m subs. This combination ensures even coverage is delivered to the entire audience. Stage fills are also ARCS Focus with SB18m subs and stage monitoring is provided by 115XT HiQ.

l-acoustics milad hall tehran

“Working with Soundvision not only means that we can precisely predict parameters such as SPL, it’s also a great help when it comes to calibrating the system,” says Mehdi Ariyaeinezhad, Sales Manager for Farasout Negar. “This saves us a lot of time during the design process and means that we can be certain that we will achieve the right results when the system is installed.

“We know that we have done this with Milad Hall and the owners are completely satisfied with the system. This was recently endorsed by Mohammad Alizadeh, one of the biggest pop stars in Iran, who said that he feels a great change in the hall and that the sound is now perfect.”

L-Acoustics: www.l-acoustics.com
Australian Distributor: www.hills.com.au
