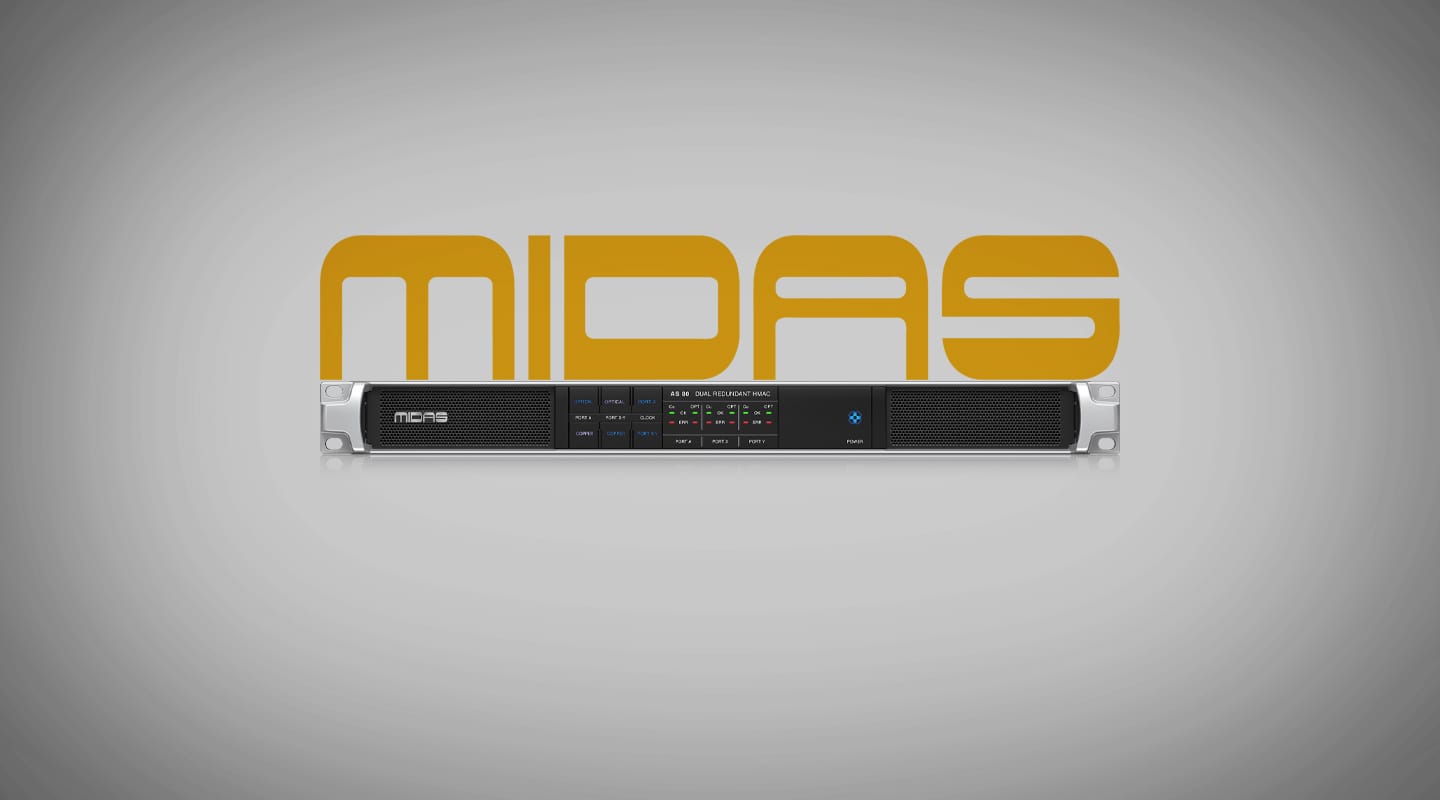

The Midas AS 80 is designed to seamlessly convert a single, high-bitrate HyperMac connection into two redundant 1GBit connections and vice versa, whilst ensuring ultra-fast audio switching. Additionally, it can also run up to 192 bidirectional channels at 96 kHz.
Reliable Redundancy
Using AS 80 with our flagship HD96 console allows both console Snake ports to be made redundant providing greater potential channel count. Furthermore, AS 80’s utilisation of FPGA-based switching technology ensures dependable HMAC failover to a redundant connection.
Tough & Dependable
Thanks to its 1U rackmountable design, AS 80 can be easily integrated into any touring or live portable sound setup without taking up too much space and can withstand the demands of life on tour.
SPECIFICATIONS
Connectors
Snake ports copper: 3 x etherCON HyperMAC
Snake ports optical: 3 x opticalCON DUO Multi Mode
Ethernet control: 1 x Ethernet control port for RJ45 connector
Upgrade port: 1 x Micro USB
Power Requirements
Mains power inlet: 2 x 3-pin IEC switched connector
Power consumption: 25 W x 2
Voltage: 100 VAC to 240 VAC ±10%
Physical
Dimensions (H x W x D): 44 x 483 x 436 mm (1.7 x 19 x 17.2″)
Net Weight: 5.1 kg (11.2 lbs)
Shipping Weight: 7.1 kg (15.6 lbs)
Temperature Range
Operating temperature range: 41 to 113°F (5 to 45°C)
Storage temperature range: -4 to 140°F (-20 to 60°C)
