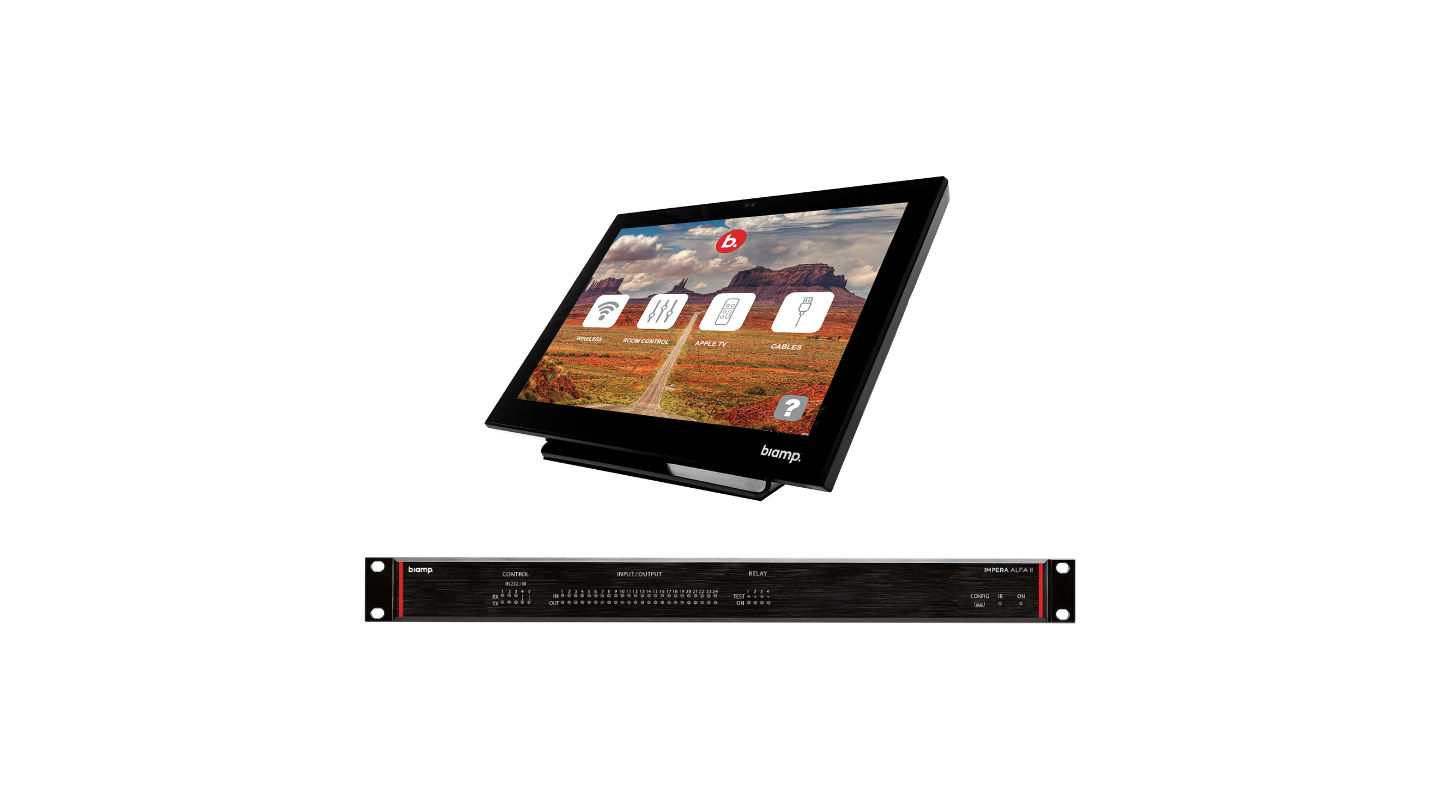

New Biamp Control Products

New Impera series AV controllers come in a range of configurations and sizes to suit each individual install, combing with touch panels to offer control to end users. Each comes with two or three bi-directional RS-232 interfaces for sending commands to AV devices with feedback functionality, and a varying number of GPIO connectors. Tango and Alfa II also offer two uni-directional RS-232 interfaces for sending commands to AV devices using serial or infrared communication.

Impera Lima:

• Programmed via Project Designer software
• 2 bi-directional RS-232 ports or 4 IR ports
• 2 built-in assignable relays
• 2 GPIO for control of relays, switches, and sensors
• PoE powered (IEEE 802.3at Class 3, 15W)
• Covered by Biamp Systems’ five-year warranty

Impera Tango:

• Programmed via Project Designer software
• 3 bi-directional RS-232 ports or 6 IR ports
• 2 uni-directional RS-232 ports or 4 IR ports
• 4 built-in assignable relays
• 8 GPIO for control of relays, switches, and sensors
• PoE powered (IEEE 802.3at Class 3, 15W)
• Covered by Biamp Systems’ five-year warranty

Impera Alfa II:

• Programmed via Project Designer software
• 3 bi-directional RS-232 ports or 6 IR ports
• 2 uni-directional RS-232 ports or 4 IR ports
• 4 built-in assignable relays
• 24 GPIO for control of relays, switches, and sensors
• Supports automatic timer functions
• Email notifications for lamp/filter hours and warnings
• Built-in web server
• Covered by Biamp Systems’ five-year warranty

Touch Panels

Apprimo Touch control panels come in a variety of sizes, from 4 through 10-inches across, to fit the needs and dimensions of any room.

Each unit is PoE powered and includes PIR sensors that turn the screen on automatically and adjusts the screen brightness based on the ambient light level of the room. The user interface is fully configurable with Project Designer software, which includes several themes and customisable templates to choose from. All Apprimo Touch displays are operated by a separate controller (such as Impera), allowing you to customise a solution that perfectly matches the customer requirements.

Apprimo Touch 4 is a 4” touch panel intended for smaller rooms. Similar in size to a smartphone, the Apprimo Touch 4 feels familiar and intuitive to use. This smallest unit is wall-mountable only. Apprimo Touch 7, 8i and 10 can either be wall-mounted or stand freely with an optional stand.

In addition, Apprimo Touch 8i features an integrated controller capable of controlling up to 20 IP-based devices.

Features

• Scratch-resistant glass
• Several UI design templates and themes available in Project Designer software
• Customisable user interface to fit customers’ control requirements and corporate identity
• Can be wall-mounted or sit on a flat surface
• Fits standard single gang US, EU, and DK back boxes
• Screen turns on automatically as someone approaches
• Display brightness can adjust automatically to the ambient light level
• PoE powered (IEEE 802.3at Class 3, 15W) for simple, single CAT5e/CAT6 cable installation
• Firmware can be updated via mini USB port
• Covered by Biamp Systems’ 5-year warranty
