STUDIO TECHNOLOGIES UNVEILS MODEL 211 ANNOUNCER’S CONSOLE

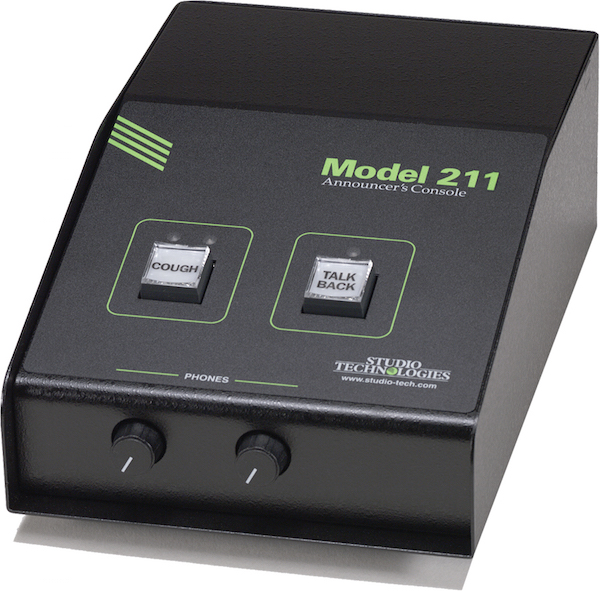

Studio Technologies introduces the new Model 211 Announcer’s Console, designed to serve as the audio control centre for announcers, commentators and production talent. The unit integrates all on-air, talkback and cue audio signal routing into one compact system while still providing plenty of configuration flexibility. For simple installation, standard connectors are used to interface with analogue microphone, headphone, talkback and talent cue signals.

“The Model 211 fits into our 200-series line of analogue announcer’s consoles by addressing some specific features requested by field production personnel,” says Gordon Kapes, president of Studio Technologies. “Based on our popular Model 210, the Model 211 offers an alternate feature set, specifically in the area of directly supporting analogue cue audio sources. Rather than being designed for compatibility with powered IFB, the Model 211 allows connection with standard balanced and unbalanced audio signals. All of the 200-series units offer ease of use, configuration flexibility and sonic excellence, and the Model 211 is no exception. The unit is at home when used for on-air television or radio broadcasting, live-event streaming, stadium announcement and other general-purpose audio applications.”

Key Model 211 features include mic preamp with selectable gain and P48 phantom power, two line-level cue inputs, two pushbutton switches that offer programmable ‘click-free’ audio path control, and transformer-balanced main and talkback outputs. The mic input is compatible with balanced dynamic or condenser microphones and incorporates a preamplifier circuit that provides amplification over a 20-60dB gain range in 10dB steps. The main output is intended for use as an on-air, stadium announce or other primary audio feed. The talkback output contains resistors in series with its output connections, allowing the user to directly combine talkback outputs from multiple units.

Extensive configuration choices are accessible via DIP switches located on the bottom of the tabletop unit’s enclosure. A broad range of configuration choices let users easily select their desired operating parameters. The Model 211 was designed and built with professional-quality components throughout to deliver the highest quality audio and reliable performance. Audio routing is performed using solid-state devices and each critical audio path features clickless electronic switches for noise-free control. All inputs and outputs make use of protection components to help prevent damage from real world signal anomalies.

More Info:
Studio Technologies: www.studio-tech.com
Australian Distributor: www.madisontech.com.au
