Immersive Projector Exhibition
Video & sound distribution over HDBaseT thanks to ATEN.
26 January 2023

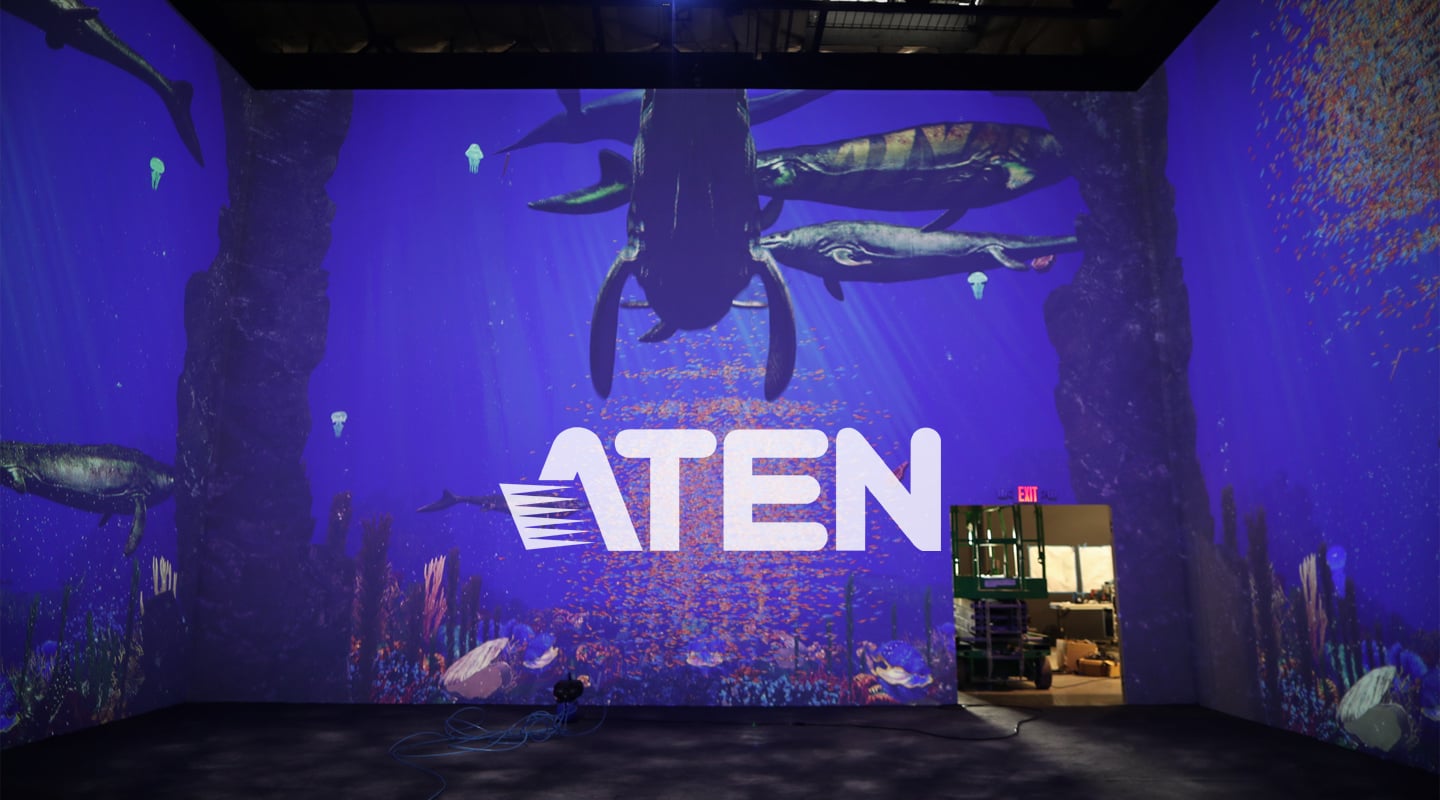

A traveling exhibit wanted to create three 360-degree immersive rooms with projected video on floor-to-ceiling walls, and audio that would allow guests to be surrounded by animation and sound to bring to life exhibits about renowned painters Monet and Klimt, and majestic dinosaurs. The setup would also require two separate control rooms to control the splitting and extending of the necessary pro AV feeds.
In addition, the installation needed to be simple enough for exhibition managers to set up and control, as well as easily transportable to travel from city to city. The project would need reliable after-installation support to ensure the exhibits continue to operate seamlessly and provide visitors the best possible immersive experience.
Requirements:
High-Quality Video & Audio Transmission
The solution needs to transmit both video and audio in high quality to create an immersive experience for exhibit visitors.
Reliability & Availability
Because of supply-chain issues and regular technical support needs, the solution has to be readily available.
Streamlined On-Site Troubleshooting
The client wanted to only use projectors for image delivery to ensure there are fewer points for failure in the exhibition rooms.
Simplified Setup & Re-Usability
As a traveling exhibition, the client needed for the setup to be easily assembled, and be simple enough for exhibition managers to use.
“The video player, extender, and projector talk to each other easily using the HDBaseT protocol. That helps us a lot to make things easier and faster, to create this immersive experience of trying to bring people into the paintings,” shared Marco Morelli, Senior Production Manager, Exhibition Hub.

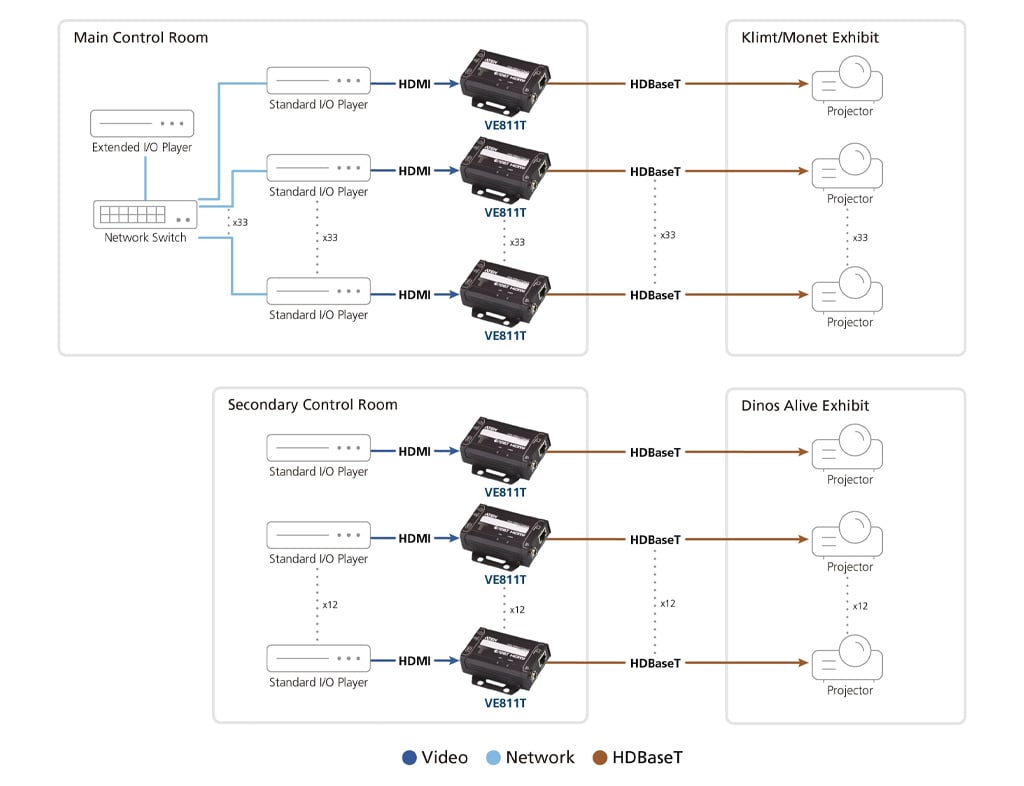

CONNECTION DIAGRAM
The ATEN Solution:
Crystal-Clear Video & Audio Delivery
The chosen ATEN HDMI HDBaseTTM solution supports 4K video and Dolby Digital 5.1 and DTS HD audio.
One Cable To Transmit It All
Audio and video can be transmitted up to 100 m over a single Cat 5e/6/6a cable for streamlined setup and AV delivery.
Intuitive, User-Centric Device Design
ATEN’s VE series extenders are plug and play, with intuitive labelling, so that on-site staff can relay remote troubleshooting instructions.
Standardised Installation & Device Communication
Thanks to the HDBaseTTM protocol, VE extenders can easily communicate with video players and projectors, no matter the setup.
Products:
VE811T
HDMI HDBaseT Transmitter, 4K@100m, HDBaseT Class A
ATEN: aten.com
Exhibition Hub: exhibitionhub.com
HDBaseT: hdbaset.org
