Powersoft Amps Installed in Monash University LTB

By

17 September 2018

First established in 1958, 20km south-east of Melbourne, Monash University’s Clayton campus has recently undergone an extensive transformation of its Learning and Teaching building – with 65 formal and 60 informal newly equipped learning spaces spread over almost 30,000sqm providing a truly forward-thinking, innovative environment for campus teaching.

Designed to free the minds of the academics and students, liberating them from the constricts of more traditional teaching environments, the AV set up is central to this philosophy – enabling teachers and students alike to engage with the technology intuitively, rather than it being a barrier to learning. Myles Fenton, Capability Manager Audiovisual for Monash University, whose team lead on the AV design for the project, affirms this guiding principle: “‘Student agency’ was at the core of our thinking: students have to feel empowered and comfortable to make their own decisions. They’re adults, they’re sitting in a space for three hours… if they’re waiting for permission to do everything then it’s not going to lead to great outcomes.”

Monash University worked with CHW Consulting to lock down a specification for the project to go to tender, and Rutledge AV won that process and was appointed as the AV systems seller and integrators for the project. Powersoft, was on-boarded as a key supplier in the AV mix, with its dedicated install multi-channel amplifier series, Ottocanali and Quattrocanali, deployed throughout Clayton’s Learning and Teaching Building.

22x Ottocanali 1204 DSP+ETH, 10x Quattrocanali 1204 DSP+D (Dante), 5x Quattrocanali 2404 DSP+D (and 2x M20D-HDSP+ETH) were installed in total as part of a high-spec audio set up which puts the end users – the teachers and students – at the heart of the solution.

Arthur Soh, Powersoft’s regional sales manager – APAC, remarks: “Our advanced amplifier solutions are perfect for this kind of landmark education project. Offering ease of integration and improving system performance, the Ottocanali and Quattrocanali ranges offer premium sound quality, are highly reliable and are unrivalled at the price point.”

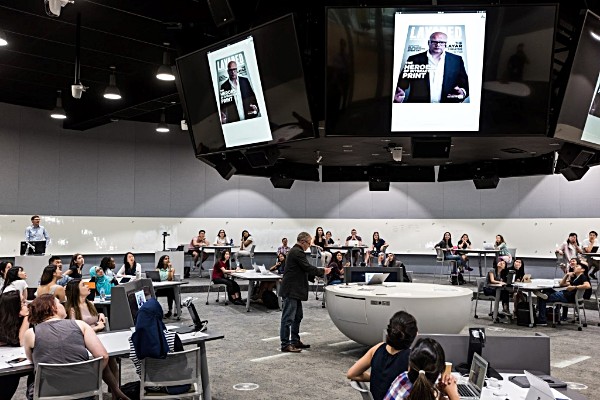

This is evident in Learning in the Round, the centrepiece of the Learning and Teaching building which turns traditional approaches to education on their head. It is the perfect articulation of an alternate approach – where the AV actively encourages the educator to step out of their comfort zone, and the student to participate, share and collaborate. Based on the sound psychology of round teaching environments and the premise of creating a space where no one person has ascendancy – Fenton and his team set about designing the ultimate in-the-round learning space. Fenton describes: “The common shortcoming in other spaces of this kind is lines of sight issues which create a disconnect between the focus on the presenter versus the content. Our solution is an array of 98-inch screens, with a round central ‘map’ table sitting underneath, four floor-standing preview monitors allowing the presenter to be connected to the content without obscuring the view – and critical to maintaining the central focus is the high-spec audio system.”

Fenton continues: “We knew that round spaces have the potential to be an acoustic disaster. In our research we encountered a lot of distributed in-ceiling audio solutions which don’t cut it. It just sounds like the voice of God booming around… there’s no connection with who’s speaking. We had the space comprehensively modelled for speech intelligibility. We have acoustic treatment above and below the whiteboards around the perimeter of the room and incredibly dense acoustic treatment in the ceiling. The whiteboards are obviously highly reflective, so we’ve tilted those up so first reflections go into the acoustically treated ceiling. In the same way the octagon of screens is tilted down, both for better sight lines but also to break up those acoustic reflections.”

Ben Clarke, head of the technical support department at PAVT, distributor for Powersoft in Australia, provided specialist know-how in the audio design and adds: “The days of a pair of plastic loudspeakers next to a screen for program and a bunch of ceiling speakers for voice are well and truly gone. The Learning in the Round was a big audio challenge because of its shape; the reverberant field will focus all the energy back into the centre and there will be various hotspots. Consistency is key – whilst also finding a balance in the investment across the three key aspects of good installed sound: speaker directivity, acoustic treatment and the microphone.”

To address all of these challenges, the university opted for Shure ULX-D wireless across the campus, while selecting a high-directivity device with tight, controlled dispersion patterns (the EAW KF394) mounted above each display in the octagonal array. The KF394 was chosen because of the enclosure’s spaced pair of 10-inch drivers which help extend pattern control down into the midrange where the power frequencies of speech are. As downfill, the EAW VFR69 is used – paired with Powersoft’s Ottocanali or Quattrocanali multichannel amps – ensuring it shares a consistent sound with all the other EAW speakers on campus. In another example of the depth of consideration which was applied to the design, the AV touchpoints are purposefully situated in the corner of the room to encourage the teacher to be out with the students rather than preaching from a lectern up front.

Beyond the Learning in the Round, EAW’s Greybox processing block allows for an identical amplitude and phase response in the smaller learning spaces as well as the high-spec theatres – with the ability to implement the filter set into the Powersoft amp natively. The integrator simply loads the preset and it will be sound optimised, correct and accurate no matter what loudspeaker category is chosen for a particular room or application. This supports Monash’s goal of delivering an equal audio and acoustic experience regardless of the space.

Clarke affirms: “The ability to install the EAW Greybox DSP presets allows lecturers and listeners to have a matched response across multiple different rooms with differing loudspeaker choices. With the project team using Powersoft’s Armonía software for loading the EAW Greybox presets and final loudspeaker system equalisation, the room file is then saved for future service.”

“Our aim with this project was to provide the learning space of the future for our teachers and students to excel in, and help consolidate our position as one of the leading academic institutions in the world. The incredible audio set up plays a key role in this; students are more engaged than ever as they become immersed in the content which is offered up in an innovative way that encourages them to think differently,” Fenton concludes.

Powersoft: www.powersoft.it
Australian Distributor: www.pavt.com.au
