RIEDEL PRODUCTS AT ISE 2019

At this year’s ISE show, Riedel Communications will showcase its latest innovations in real-time signal distribution and networking solutions for broadcast and live performance. Riedel’s product line reflects the company’s continued support of standards and interoperability, ongoing development and expansion of software app-based solutions, and groundbreaking concept of decentralised signal routing.

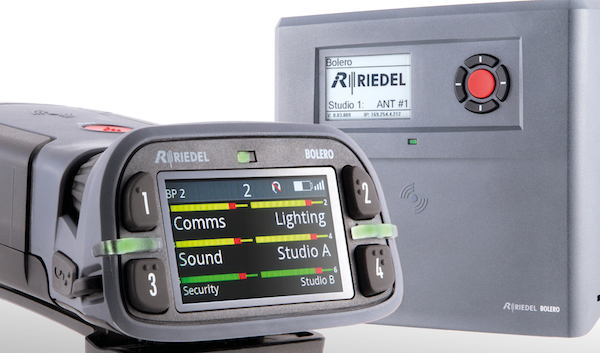

Bolero Standalone Wireless Intercom System

Riedel will showcase its all-new Bolero Standalone Application, a license-enabled upgrade for the company’s category-defining Bolero wireless intercom system that delivers several performance enhancements along with standalone capabilities. With the Bolero Standalone Application, antennas are daisy-chained to each other in a line or a redundant ring via a low-latency, synchronised TDM network.

Bolero is truly plug-and-play, with no IP configuration needed. A new external power supply can power up to five antennas, so power and data redundancies are easily achieved. A new, single-RU, half-width external interface box, with six analog 4-wires and three GPIOs, can be directly connected to any antenna and then patched into an existing intercom system. The system is easily configured via a web GUI internal to the antennas. Other new capabilities provided by the Bolero update include individual rotary programming, Bluetooth headset support, and a new beltpack QuickMute feature that allows users to easily set the volume of all channels to zero.

SmartPanel 1200 Series

Also at ISE 2019, Riedel will display its 1200 series SmartPanel (RSP-1232HL). The RSP-1232HL panel features multiple full-colour multitouch displays, 32 innovative hybrid-lever keys, the ability to leverage apps for multi-functionality, and the ability to adapt easily to the various workflows in use today. As the latest of the company’s highly popular SmartPanel app-driven user interfaces, the RSP-1232HL is poised to allow users to work the way they always have while opening up entirely new possibilities.

Each of the RSP-1232HL’s 32 lever keys features an integrated rotary encoder that provides control over parameters in the same location as the key. Users are able to choose custom colours for either the key labels or the LED rings that are positioned around each key. In addition, the RSP-1232HL supports AES67 audio through two fibre SFPs and two RJ45 connections that offer a variety of daisy-chaining and redundancy options and deliver extraordinary cabling flexibility.

MediorNet MicroN IP App

Riedel’s MicroN IP App creates a seamless bridge between the company’s award-winning MediorNet real-time signal routing network and IP networks. The MicroN IP App supports SMPTE ST 2110/AES67-compliant video and audio as well as baseband video (SDI) and audio (MADI). In combination with all the built-in glue features — including audio embedding/de-embedding, frame sync, sample rate conversion, audio/video delay, signal routing, and on-screen display — the MicroN IP App turns the device into a universal tool for all IP-interfacing needs. At the same time, the device can be fully networked with all existing MediorNet products. MicroN IP applications range from a stand-alone SDI-to-IP converter to a fully networked system with numerous different IP gateways and baseband inputs and outputs.

The MicroN IP App includes support for up to four MediorNet high-speed links, up to four SMPTE 2110-20 inputs and outputs, four baseband 3G-SDI signals, and eight 3G-SDI outputs. Four of these outputs are dedicated to monitoring the SMPTE ST 2110-20 streams. Also supported are up to 128 channels of AES67 audio, two optical MADI ports, and sync I/O.

Riedel: www.riedel.net
