Kara Strikes Goldie Amphitheatre
Home of the Arts selects L-Acoustics.
15 January 2019

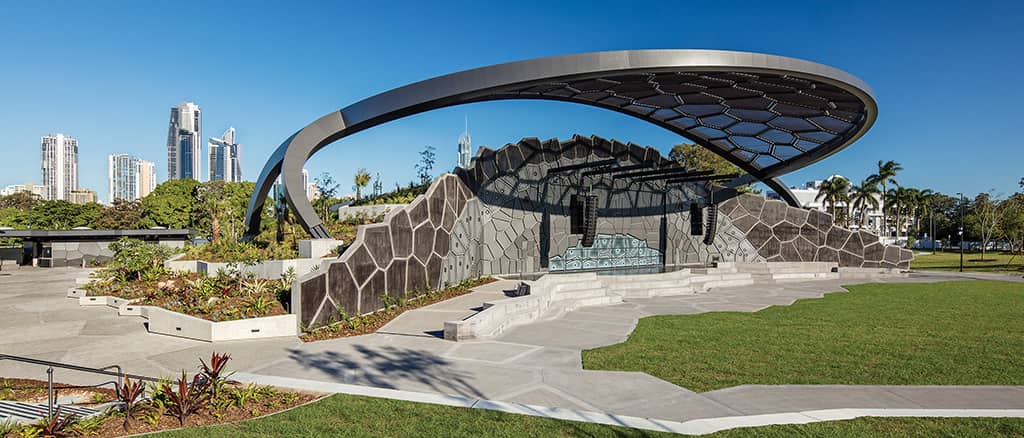

The Gold Coast has done much more than rename its cultural precinct. Nestled between parklands, a lake, and Surfer’s Paradise, HOTA (Home of the Arts), unveiled its new $37.5m outdoor amphitheatre earlier this year. HOTA’s new outdoor stage required a sound system that could deliver superb audio quality for a wide range of events. An L-Acoustics Kara system provided by Gold Coast L-Acoustics sales and installation specialist/integrator con-sol has drawn rave reviews from performers and audiences alike.
As with many large-scale projects, there were challenges — one of which was that the outdoor stage had been constructed within an urban residential area. A noise management plan would need to be implemented to provide a great experience for performers and audience alike, without disturbing the neighbours.
“While a benchmark system had been proposed, in the interest of accountability and transparency, a loudspeaker shootout was organised, from which the L-Acoustic Kara was ultimately selected to best suit the operational requirements of the outdoor stage,” explains HOTA’s Technical Supervisor, Richard Muecke.
con-sol supplied the L-Acoustics system as part of the shootout. Managing Director Bill Karaitiana and con-sol’s technical team were responsible for delivering the Kara system, which outperformed the benchmark system both in terms of performance and cost.
L-Acoustics: www.l-acoustics.com
Jands: (02) 9582 0909 or www.jands.com.au
con-sol: www.con-sol.com.au
5 STAR HOTA
The system itself is a flown stereo system comprising two main arrays of 14 Kara each, and two sub arrays of five SB18 subs, hanging directly behind the main arrays. Four X8 full range cabinets provide additional coverage at the front of the stage. Depending on the demands of the event, an additional 12 112P compact loudspeakers and four discreet SB15P subwoofers can also be deployed. The entire system is driven by 11 LA4X amplified controllers, and was designed with extensive use of L-Acoustics’ Soundvision 3D modelling software.
“Given that no loudspeaker from any manufacturer had been heard at the site prior to the shootout, the modelling provided by Soundvision is testament to its predictive abilities,” explains Muecke. “The results matched the Soundvision model precisely and we now use the programme extensively to incorporate different sound designs as specified on an event needs basis. This has included supplementing the system with additional components such as L-Acoustics ARCS, SB28 and KS28 cabinets as out fill and low frequency extensions.”

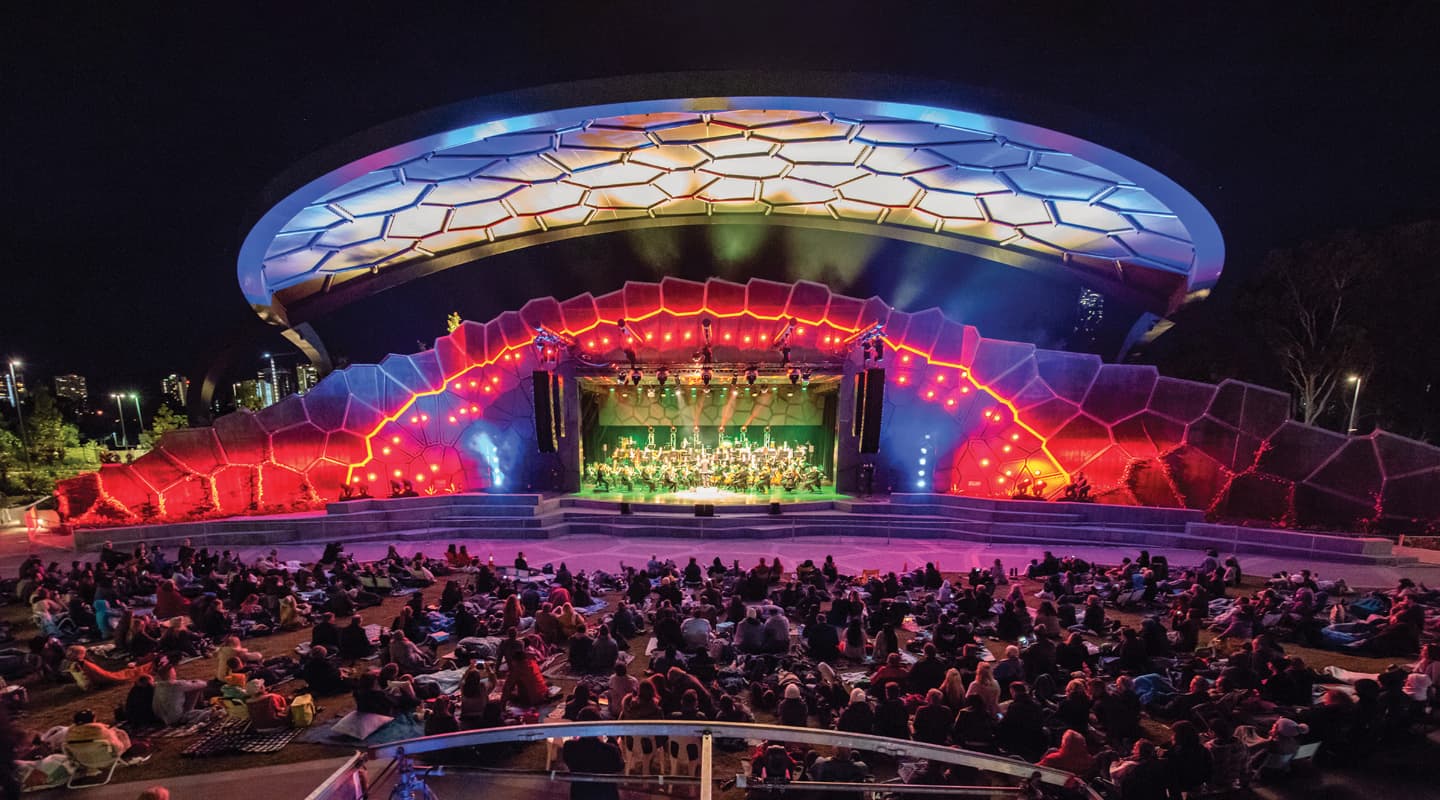

Following a performance by the Queensland Symphony Orchestra at HOTA’s outdoor stage, FOH engineer Geoff McGowan raved: “The Kara system installed at HOTA on the Gold Coast has blown me away. The clarity and articulation were superb and perfectly translated both the full power and minute subtleties of the orchestra’s dynamics in full flight. This allowed the pure emotion of the performance to easily translate to the audience, and with such a high level of transparency that the system became invisible.”
