Text:/ Gareth Stuckey

CHOOSE YOUR AMPS

Another added bonus is that the system can be driven with basically any amplifier, allowing you to potentially replace only the boxes in a refit scenario, or use amps from your existing inventory if you’re a production company. Having said that, for this review I simultaneously demoed the RoomMatch system with Bose’s newly created PowerMatch 8500 amps. The 8500 is a Class-D amplifier that Bose claims has the reliability and sound quality of Class AB unit.

The design boasts some very clever technology. Firstly, the PeakBank power supply delivers power to whichever amp channel needs it most, drastically improving efficiency and transient response. Even better than that is what Bose calls its ‘Quad-Bridge’ mode. This allows the user to set up the amplifier as needed, resulting in any system that you build only requiring a single model of amp to drive it – power can be allocated in different ways depending on the system requirements. In a nutshell, there are 4000W of power available, and up to eight outputs per amp. This allows you to configure the amp as a stereo 2kW beast, or 500W per-channel into eight channels, or any combination in between. That’s not only a fantastic facility, it’s downright convenient – one amp can act as two 1000W channels plus four 500W channels and so on. Perfect for powering the whole system!

All eight in and outs on the amp have DSP for setting up a system, including presets for all the Bose range (old and new). They can also be configured from the front panel, or through USB connection to drive any loudspeaker. Wow.

FLEXIBLE & POWERFUL

Bose has been very smart in allowing such flexibility – the end-user can choose if they want a complete system, or just new boxes that can be driven with previously installed amps.

But onto the real test – what did it sound like?

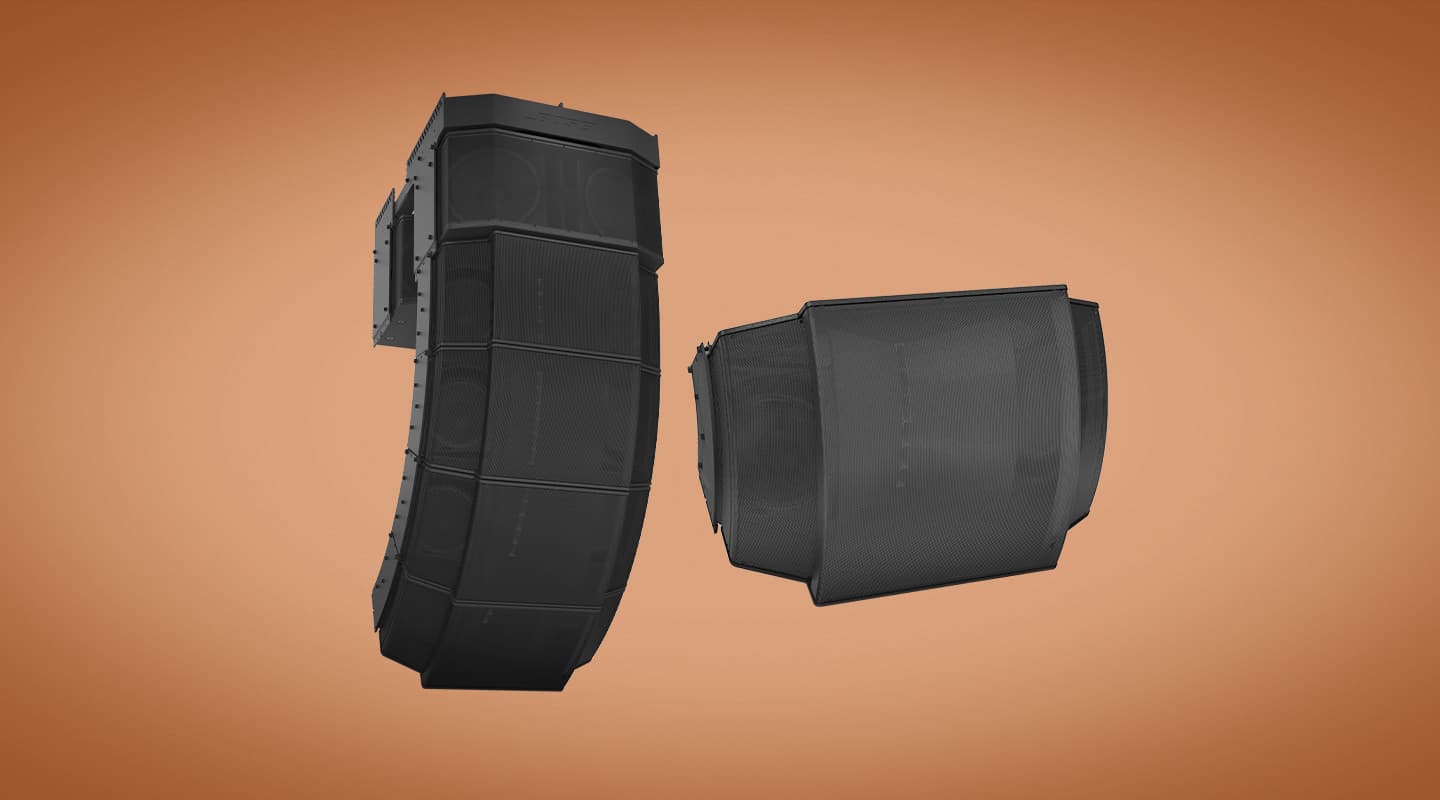

The system I was mixing on for demo purposes had four boxes per side, and a further centre cluster of four boxes. These weren’t meant to be used together, but rather show the possibility of installing the system in a number of formats to meet budget and venue expectations. Each array was driven off just one PowerMatch amp! (Again, this is incredible.)

As I usually would with any new system, to familiarise myself with the RoomMatch Array I put on my iPod of familiar tracks and had a good walk around the room. The L/R system sounded pretty awesome – extremely smooth in its response. The main thing I noticed (or didn’t) was that from the front to the back of the room the top end was extremely consistent. I sometimes find with line arrays that the tops can be almost too directional – you can find yourself walking out of the coverage of one box before entering the pattern of the next. There was none of that going on here. Front to back it was impossible to say which box you were listening to – the system sounded like a single element rather than the sum of four. Bass response was very solid and powerful right down into the nether regions. Kick drums and bass were fully reproduced, and the top end extremely smooth. It didn’t sound like a horn at all, more like a dome tweeter. The midrange was very clear and defined, however, if I was to be critical at all I would say the system lacked a little ‘crack’. It was all there, and certainly not missing anything tonally, but snares and guitars didn’t leap out at me. Having said that I find this to be the case with lots of line array systems – I sometimes miss the directness of a point source box.

SHOWTIME

So – on with the show – I spent the next three days mixing on this system. A number of presentations featured both headset and handheld mics, there were demos of pre-recorded music, and a live band. I noticed particularly with the presentations that gain-before-feedback was excellent, due in no small part to the very specific dispersion patterns of the system and hence the reduced reflections back to the stage area. These presentations were done with just the centre cluster providing coverage to the entire room. Pre-recorded music was very accurately reproduced as already mentioned.

The live band meanwhile was a standout example of what the system could handle. With a full band on stage consisting of grand piano, keyboards, two guitars, bass, drums, sax and two singers it was certainly a full mix. Everything sounded how it should without too much work. I was particularly impressed with the size (width, depth and realism) of the grand piano. Occasionally grand pianos seem to shrink when you mic them up, but not so in this case. Again, I noticed excellent gain-before-feedback on this sometimes troublesome instrument (especially in the low end – an even better indicator of the directivity of this system).

PROBLEM SOLVER

One thing that really stood out during the three-day demo was the excellent imaging of the system. Even though there were no in-fills or front fills, no matter where I sat in the theatre I felt like the sound was coming from the stage. There was none of that ‘PA way up there’ feeling that can happen with some array systems. This was especially noticeable with the presentations on the centre cluster. I felt right there, in the space, like I was listening directly to the person speaking. Not bad at all in a 700-seat venue.

After putting the system through its paces in a variety of ways, I can confidently say that Bose has achieved its design goals. No-one is suggesting we should think of this system as a V-DOSC killer – that’s certainly not what it’s meant to be. What it is, however, is a great tool for system designers around the world. I can see the RoomMatch Array being used in all manner of situations where budget would otherwise have precluded an array system – say a small regional theatre or churches, or a large-scale installation where an expensive concert system simply wasn’t required, but would have been the only option available.

After the demo my mind started to imagine all the possible scenarios where the RoomMatch system might benefit troublesome venues, and my first thought went to the extremely expensive refit of Sydney Town Hall: a very difficult reverberant, reflective room – long and narrow with a second level of seats that cover the entire perimeter. The current system is a centre hang of D&B J-Series, but with no products available to ‘narrow’ the throw to reach the rear seats, or ‘widen’ it to get to both the floor and the raised seating nearer the stage, a number of point source boxes have had to be utilised slung underneath the main system for in- and out-fill. The result is less than perfect, and certainly doesn’t contain the coverage to help with the already difficult reverb times. I can’t help but think that the flexibility of this Bose system would have allowed for a more tailored coverage pattern, and hence a better end result. For a Town Hall that likely only sees corporate speeches, school presentations and the odd government function, this system would have suited perfectly and likely cost significantly less!
