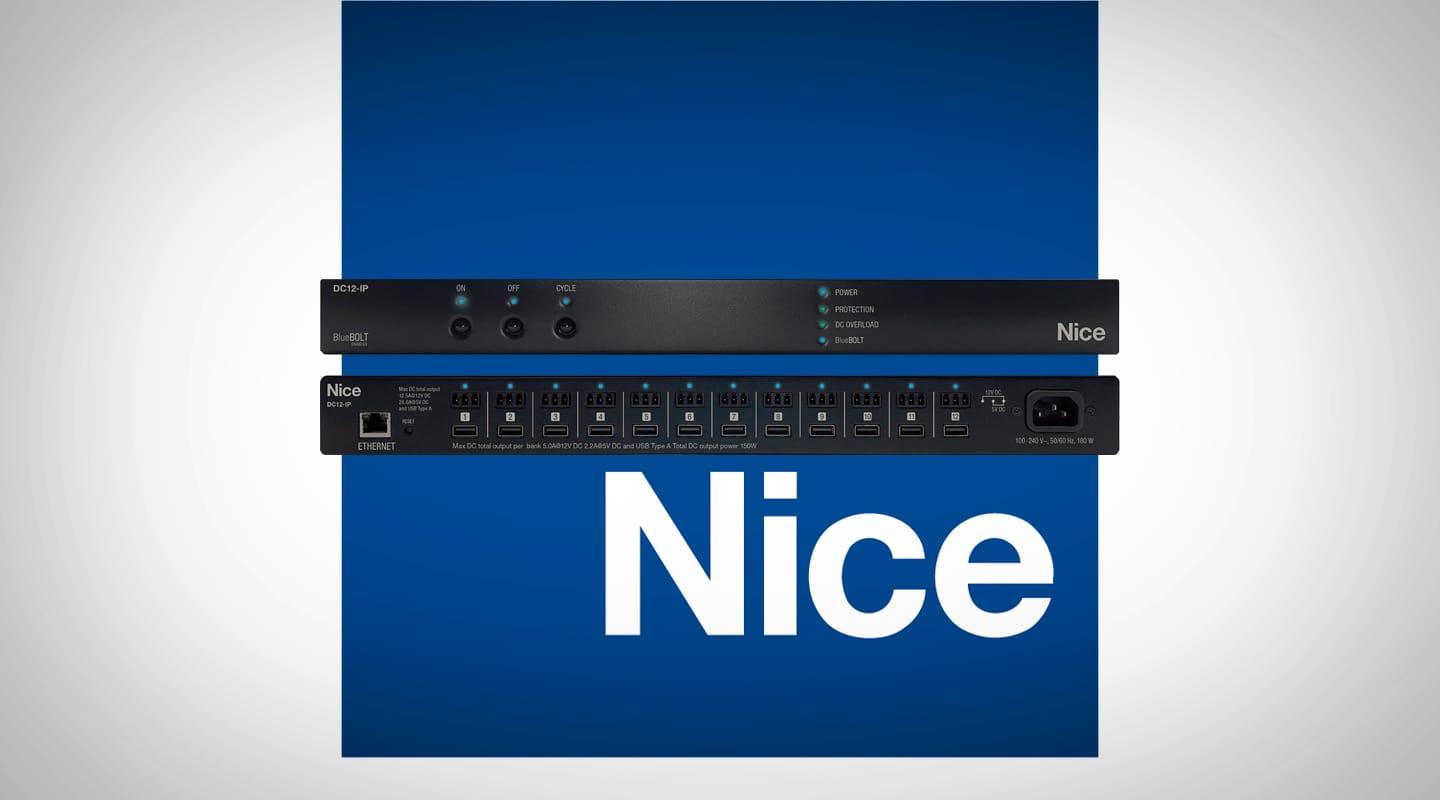

Nice DC12-IP Smart Power Manager

Smart, space-saving, rack-mounted, power management & protection.

14 July 2023

Nice, the parent company of GEFEN and Panamax, has answered a common power supply challenge for AV integrators. The Nice DC12-IP Smart Power Manager enables remote power and energy management from a slim rack-mounted enclosure. The DC12 features twelve individually controlled USB ports or Terminal Block outputs. The 5/12 Volt DC outlets are fully controllable via BlueBOLT Cloud Management, the device’s front panel, a local Web GUI, an IP Control System and OVRC.

Advanced Features

Space-saving design powers up to 12 devices in one rack space
Provides remote power + energy management
12 individually controlled USB ports or Terminal Block outputs
IP Controlled and BlueBOLT Enabled
All outlets can be renamed and grouped
Discrete sequence on and off times as well as setting power cycle times for remote cycling of routers and other network infrastructure
Advanced Surge Protection protects connected equipment from power surges and dangerous voltage conditions
Standard EMI/RFI Filtration AC for best electronics performance
Power Sequencing
Reduces equipment issues/service calls with remote reboots
Provides visibility on energy usage with cloud-based monitoring and tracking
Reduces excess energy consumption with scheduled on/off commands
Rack mounting brackets included

SPECIFICATIONS
Input Voltage: 90 – 264V AC
Input Frequency: 47 – 63Hz
Maximum Input Power Rating: 180 W @ 120V AC (DC output fully loaded)
Maximum DC Output Current, Total: 12.5A @ 12VDC / 26.0A @ 5VDC
Maximum DC Output Current, Per Bank: 5.0A @ 12VDC / 2.2A @ 5VDC
Total DC Output Power: 150W
Maximum Operating Temperature (Tma): 40°C
Dimensions (L x W x H): 292 x 432 x 38 mm
